Swing gate 4m VOGEL H.180cm grey aluminium

Name: Swing gate 4m VOGEL H.180cm grey aluminium
Brand: casanoov
Price: 1649.0 EUR
Availability: InStock

SKU : KIT-000009

16279 kr

–15% on the entire site until 15/09!

code:

Width: 392cm and Height: 178cm
Ideal for windy areas
Corrosion resistant
Accessories included

In stock - Delivery between 19/09 and 24/09
Free shipping

Discount Pack

Save money! Discover the packs bundled with this product

SUMMER15

VOGEL 400B180 swing gate pack + VOGEL 100P180 gate 23078 kr 22499 kr

This pack contains:
VOGEL gray openwork aluminum swing gate
Width 392cm and Height 178cm
VOGEL gray openwork aluminum gate

Delivery between 19/09 and 24/09

SUMMER15

Electric swing gate 4m VOGEL 400B180 + HICKER B200 motorization 24488 kr 22969 kr

This motorized gate pack contains:
VOGEL gray openwork swing gate
Width 392cm and Height 178cm
Worm screw motorization (up to 400kg)

Delivery between 19/09 and 24/09

SUMMER15

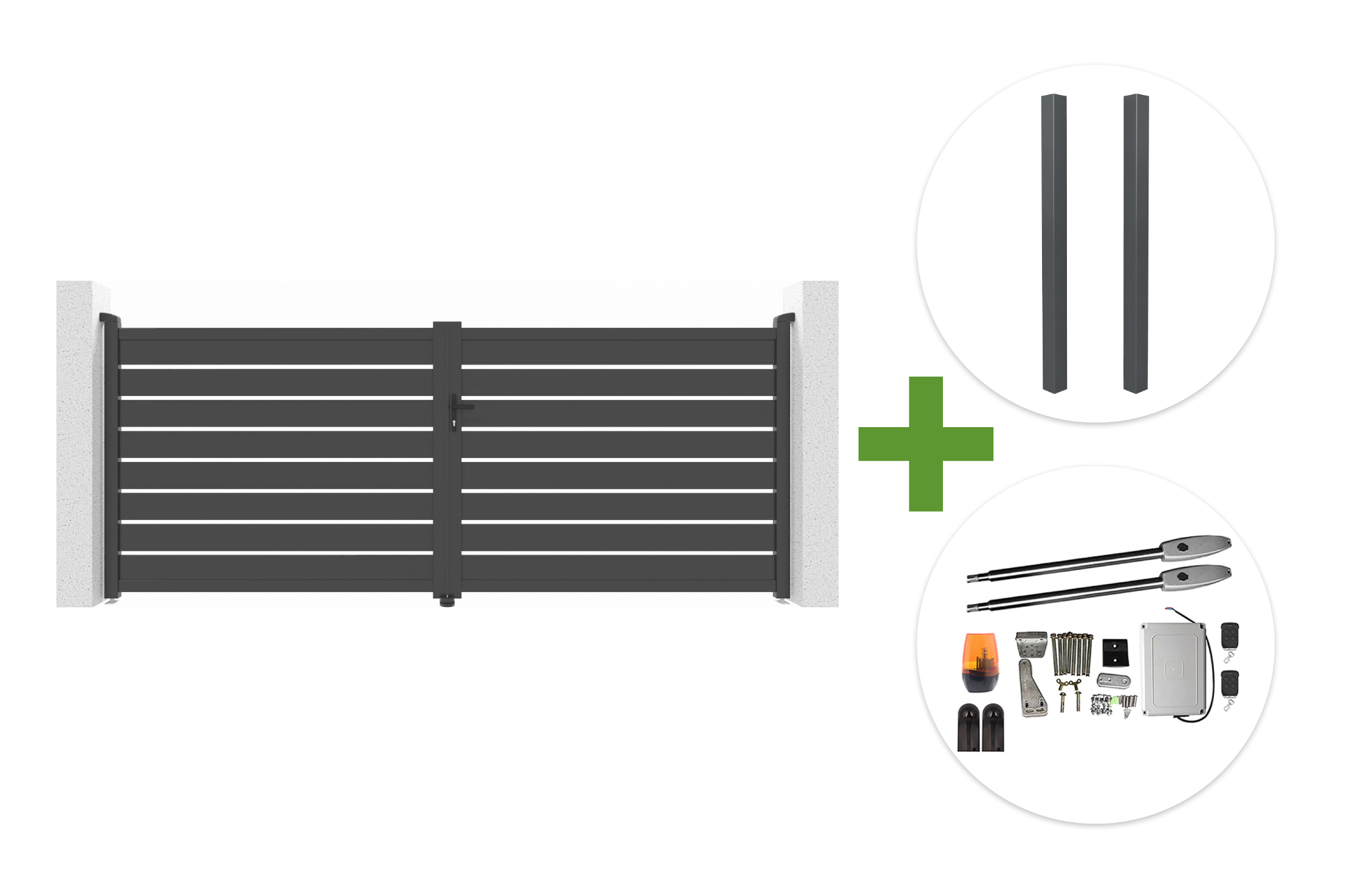

Electric swing gate 4m VOGEL 400B180 gray + TANKER B250 motorization 25708 kr 24539 kr

This motorized gate pack contains:
VOGEL gray openwork swing gate
Width 392cm and Height 178cm
Actuator motorization (up to 600kg)

Delivery between 19/09 and 24/09

-5%

between 0 kr and 16799.99 kr*

-7%

between 16800 kr and 33599.99 kr*

-10%

greater than 33600 kr*

*HT orders

Find out more

Technical data

Compatible pillar spacing

393,5 - 399,5 cm

Wind resistance

60 km/h

Height

178 cm

Width

392 cm

Main material

Aluminium

Colour

Charcoal grey

RAL

7016

Finishing

Powder coating

Type of filling

openworked

Pattern / Design

VOGEL

Compatible pillar spacing

393,5 - 399,5 cm

Wind resistance

60 km/h

Height

178 cm

Width

392 cm

Main material

Aluminium

Colour

Charcoal grey

RAL

7016

Finishing

Powder coating

Type of filling

openworked

Pattern / Design

VOGEL

Opening system

Swing gate

Opening direction

To the house

Compatible engines

Yes

Compatible motorization type

With articulated arm and jacks

Frame material

Aluminium

Width between pillars

397 cm

Minimum pillar height

190 cm

Operating clearance

30 mm

Pivoting system

Ball bearing

Blade section

155*15 mm

Thickness of the blades

1.2 mm

Amounts Section

78*47 mm

Stud thickness

1.5 mm

Sleeper Section

70*30 mm

Sleeper thickness

1.3 mm

Stud/rail assembly

Self-tapping screws

Locking system

Cylinder lock

Handle material

Aluminium

Handle colour

Black

Type of lock

Keys (5)

Rod assembly

Self-tapping screws

Supplied accessories

Yes

Number of upper hinges

Number of lower hinges

Central stop

Yes

End stop

Top cover cap

Yes

Assembly instructions

Yes

Assembly time

8 h

Recommended number of persons for assembly

Warranty

2 an(s)

Eligibility Extended warranty 5 years

Eligibility Extension of warranty 10 years

Available in sliding

Yes

Weight of package No.1

24.2 kg

Weight of package No.2

22.2 kg

Weight of package No.3

22.2 kg

Description

Width: 392cm and Height: 178cm
Ideal for windy areas
Corrosion resistant
Accessories included

The VOGEL swing driveway gate with its contemporary design is ideal for areas exposed to the wind.

Description : Open boarded swing gate, with horizontal slats and flat top
Material : Aluminium
Colour : Anthracite Grey (RAL 7016)
Dimensions : Width 392 cm x Height 178 cm
Required width between pillars : 397 cm
Minimum height of pillars : 190 cm
Inspired and designed in France

This do-it-yourself open-boarded double gate kit contains :
- 16 powder coated slats (Height 15.5 cm)
- 2 reinforced powder coated slats for motorisation (Height 15.5 cm)
- 2 upper hinges
- 2 bottom hinges
- 1 central stop
- 2 reception stops
- 1 sash lock
- 1 double handles (Black colour)
- Set of 5 keys
- Finishing caps
- Screws and bolts

If you wish to motorise your double leaves gate, Casanoov suggests packs in the "Swing Gate" category
You will find promotional packs offering you a set consisting of a swing driveway gate of your choice accompanied by the appropriate automation.

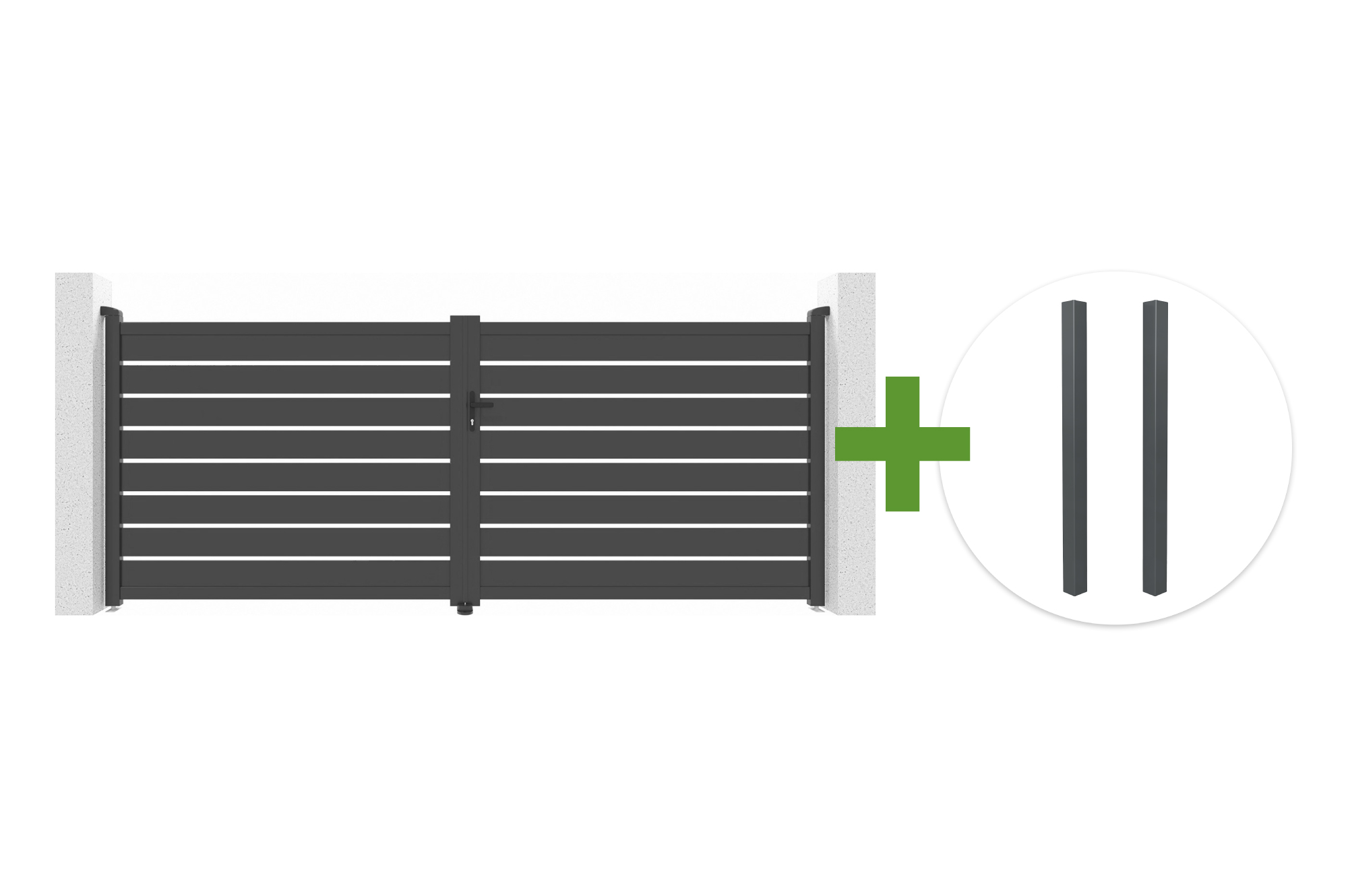

In case your installation requires pillars, promotional packages are also available containing a swing driveway gate of your choice, together with two aluminium posts to match the chosen entrance gate.
FYI : The minimum pillar height for this gate is 190cm

The VOGEL model is also available in other sizes and colours.
For a harmonious exterior, we propose matching sliding gates, garden gates and fences.

Driveway gate delivered in kit form.
Clear instructions, quick and easy assembly.
You will find all the necessary information about this product in the technical data.
